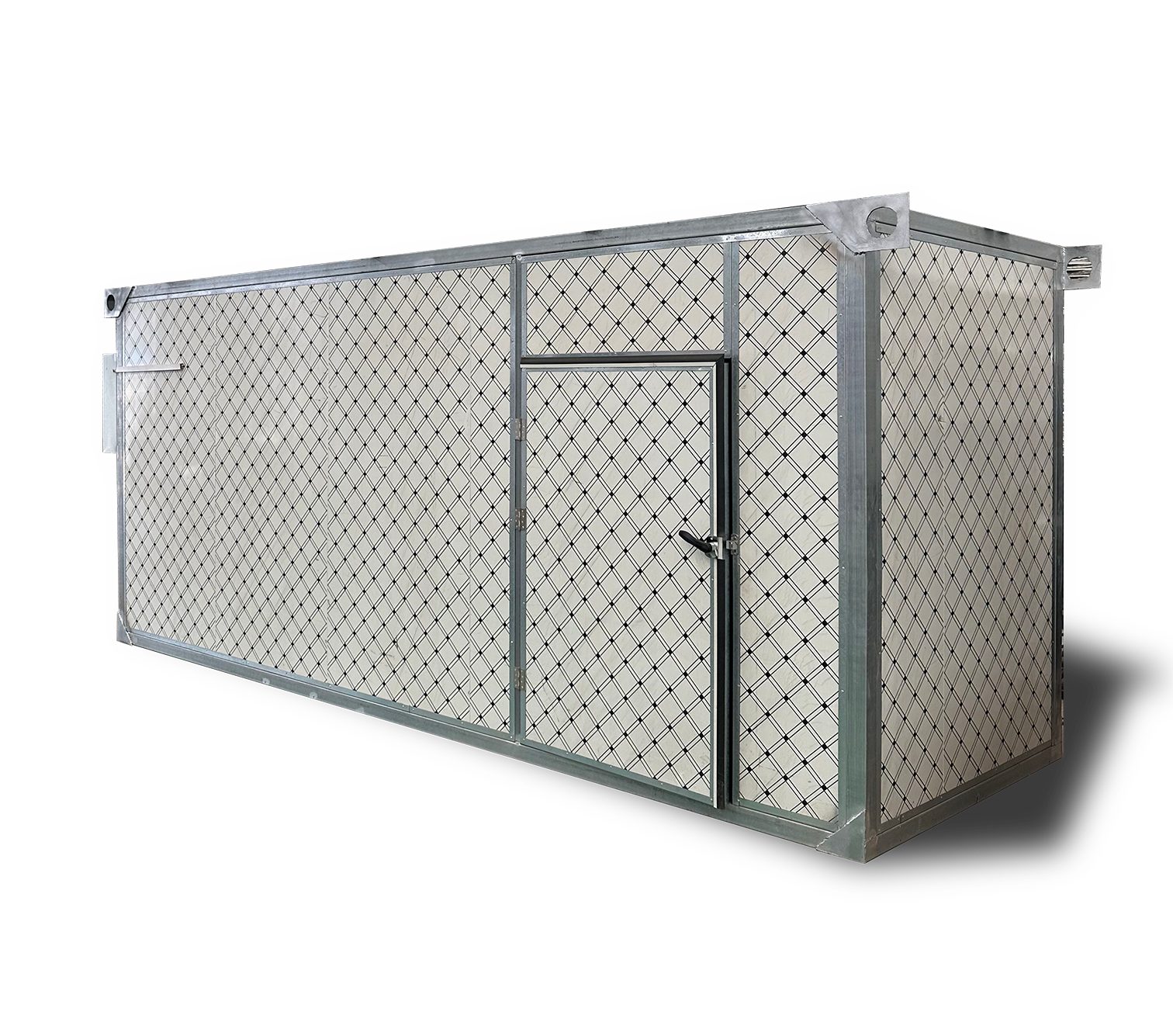

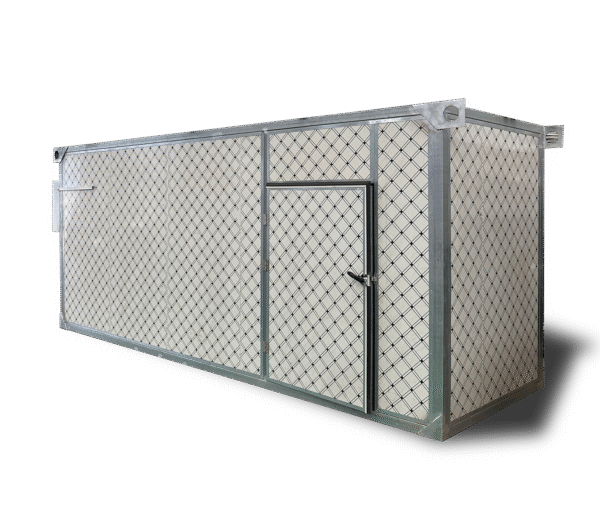

Electric hot-air drying room for food, agricultural products and medium-to-large batch drying.
Suitable customers: Farms, cooperatives, food factories, herb processors and fruit drying workshops.
Suitable drying materials: Mango, chili, dates, vegetables, herbs, grains, nuts, seafood and mushrooms.
Core Selling Points
- Clean electric heating
- Stable hot-air circulation
- Tray/trolley drying structure
- Custom capacity
- Easy operation
- Suitable for food and agricultural drying
Technical Parameters
| Heating Method | Electric hot air |
| Capacity | Small to large batch, customizable |
| Temperature Range | Adjustable according to material |
| Structure | Tray / trolley drying room |
| Application | Mango, chili, fruit, vegetables, herbs, grains, seafood |
| Voltage | Customized according to destination market |
Request a Quotation
Not sure which model to choose? Send your drying material, capacity, voltage and destination country. We will recommend the suitable machine and confirm shipping cost.
FAQ
What capacity can you customize?
Capacity can be configured according to material, batch size and chamber dimensions.
What voltage is required?
Voltage is confirmed according to your country and electrical conditions.
Can it dry mango and chili?
Yes. Electric drying rooms are suitable for mango, chili, fruit, herbs and vegetables.
Can you provide shipping to my country?
Send your destination country and city to check shipping plan and cost.

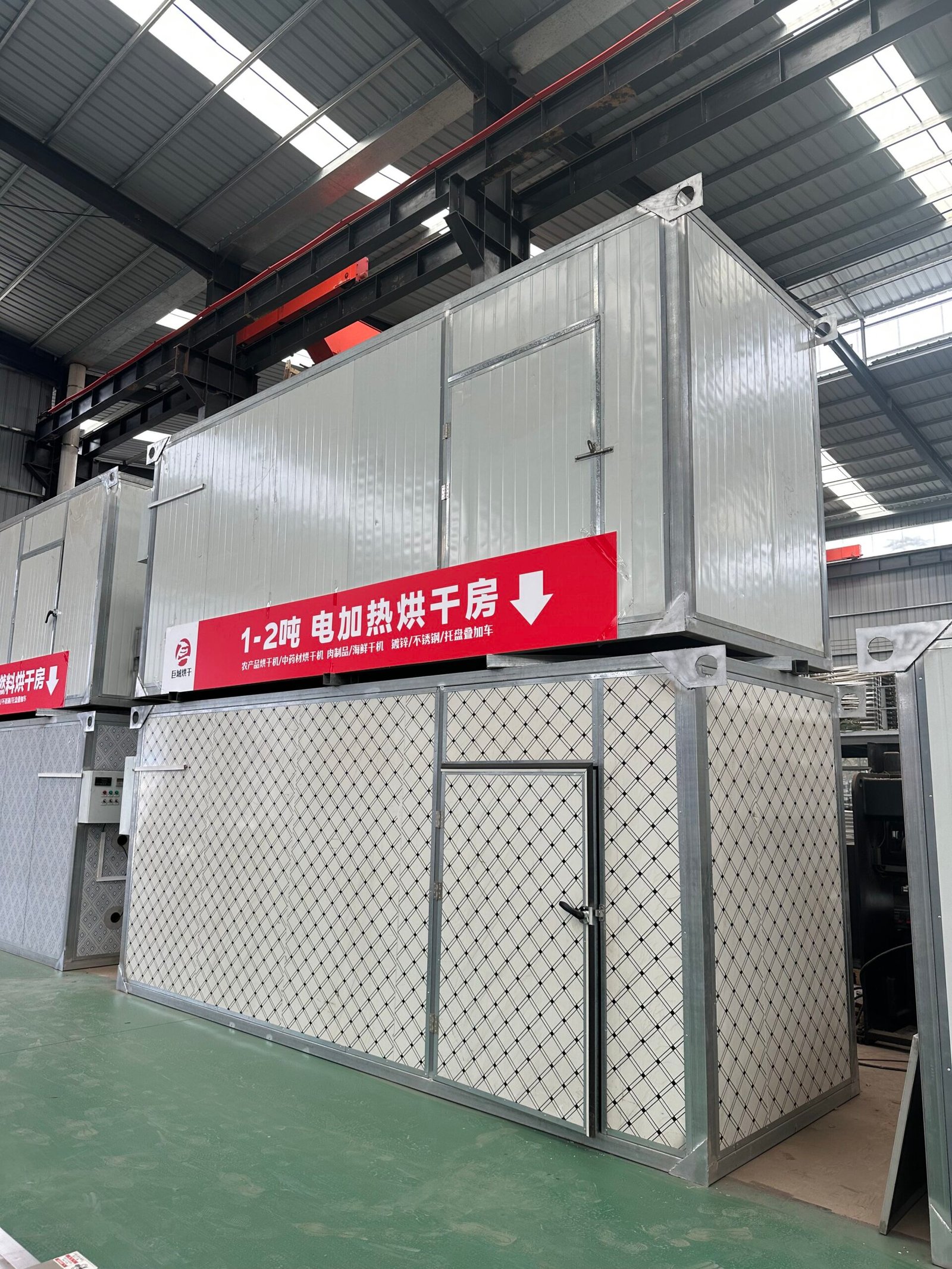

Verified 1 ton electric drying room reference configuration
Direct answer: The verified 1 ton configuration for this electric drying-room series is rated at 30 kW and is designed around a reference fresh-material load of 1000 kg in approximately 7 hours. It includes four trolleys and 60 stainless-steel trays. For other capacities within the 1–2 ton series, dimensions, heating power and tray count must be confirmed separately.
| Specification | Verified reference |
|---|---|
| Reference fresh input | 1000 kg / approximately 7 h |
| Chamber dimensions | 4040 × 2080 × 2340 mm |
| Rated input power | 30 kW |
| Reference electricity consumption | 13 kWh; measurement period was not stated in the source sheet |
| Electrical supply | Three-phase; confirm voltage and frequency before ordering |
| Insulation and door | 100 mm polyurethane panel; single door |

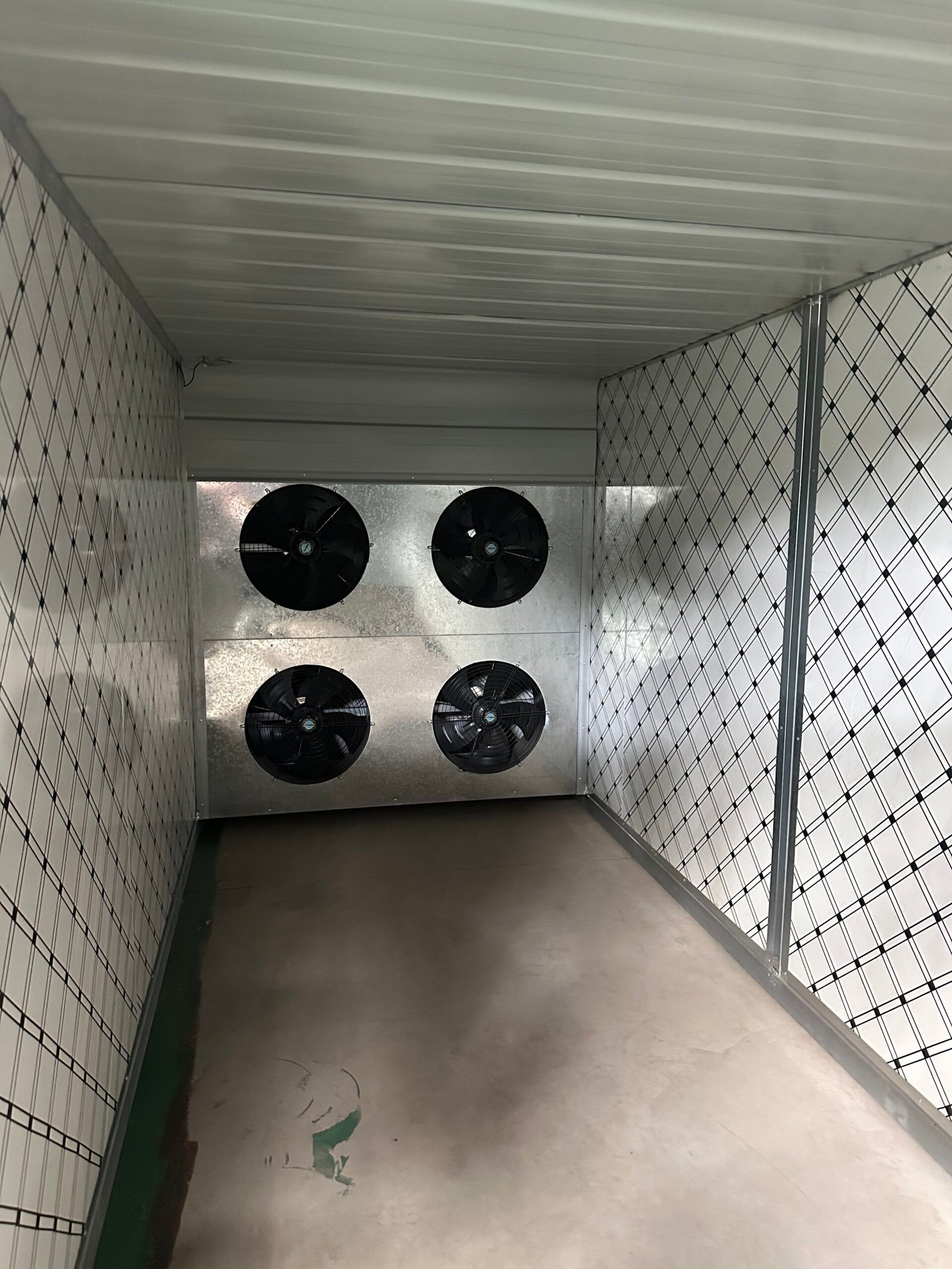

| Circulation fans | 4 × 300 mm; 580 W each |
| Moisture-exhaust fans | 2 × 300 mm; 180 W each |
| Trolleys and trays | 4 trolleys; 15 levels each; 60 stainless-steel trays, 800 × 1000 mm |

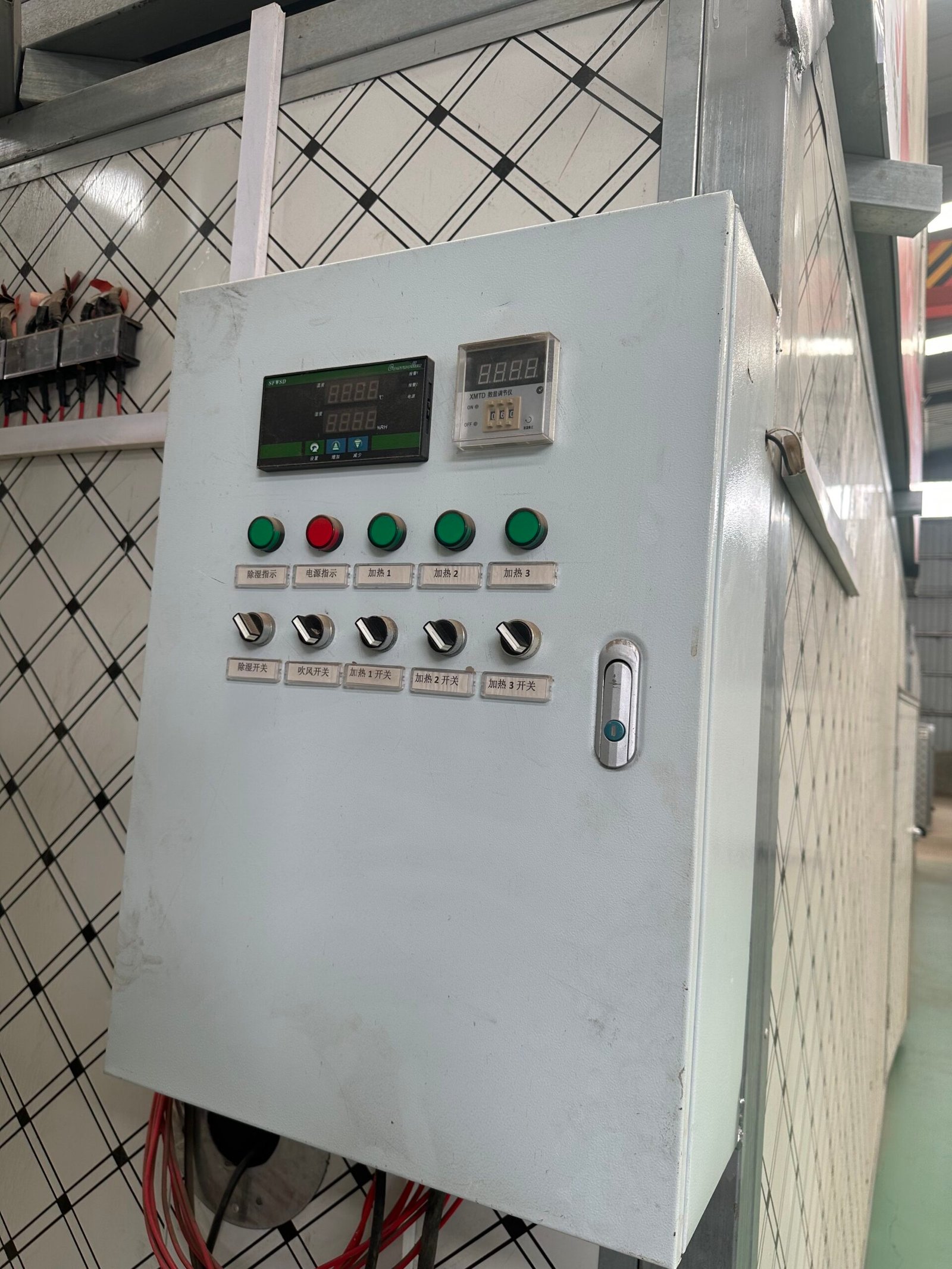

| Control | Adjustable time, temperature and humidity with staged-temperature control |
| Warranty reference | One year for the complete machine |
Capacity and energy-use conditions
Fresh-input capacity is not the same as dried output. Final results vary with the product, preparation, initial and target moisture, loading density, ambient conditions and drying recipe. Request a sample test or a written capacity basis before treating any figure as a production guarantee.
Frequently asked questions
Are the stated capacities guaranteed for every material?
No. Capacity and cycle time depend on material type, preparation, slice thickness, initial moisture, target moisture, tray loading and ambient conditions. The values on this page are reference configurations, not universal guarantees.
What electrical information is needed before ordering?
Confirm destination voltage, phase, frequency, available connected load and local electrical standards. A model should not be selected from capacity alone.
What should be confirmed in an energy-consumption figure?
Ask for the measurement period, material, batch load, moisture reduction, ambient conditions and operating stages. A kWh figure without those conditions should be treated as a reference rather than a guaranteed batch cost.
